Description

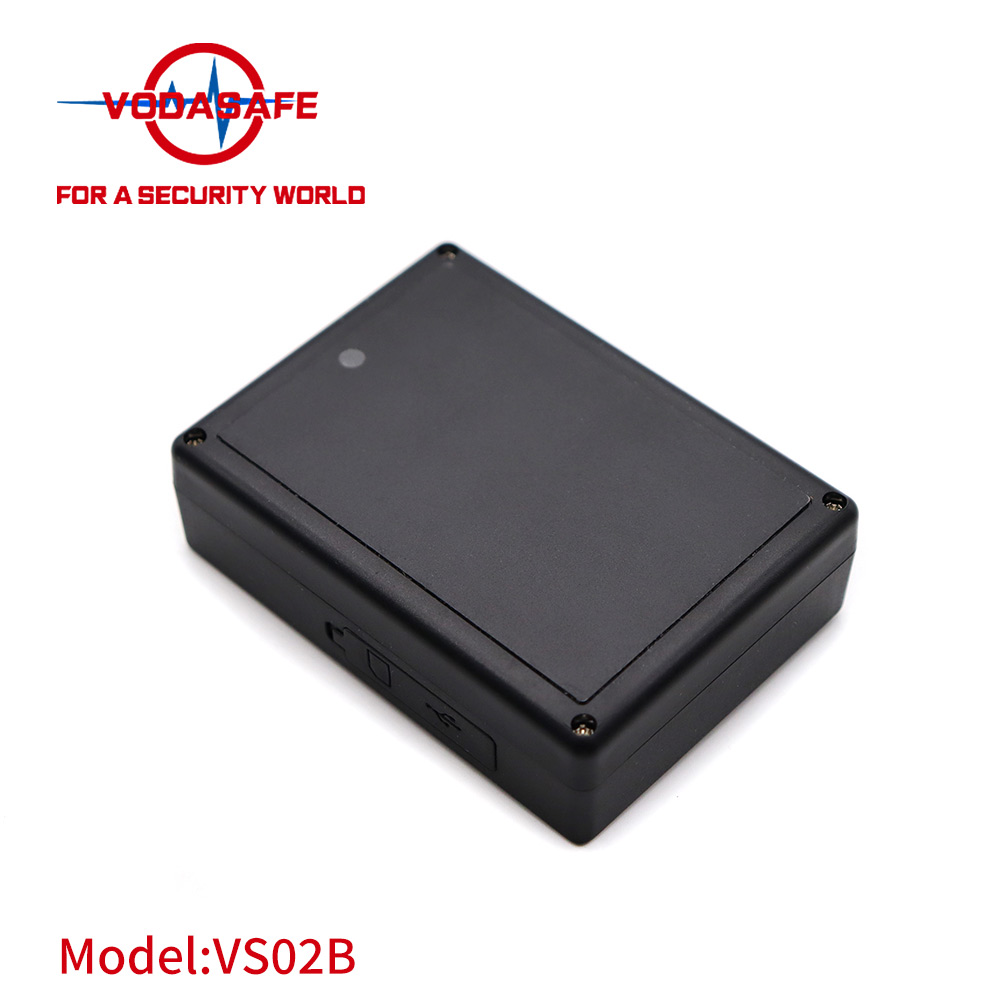

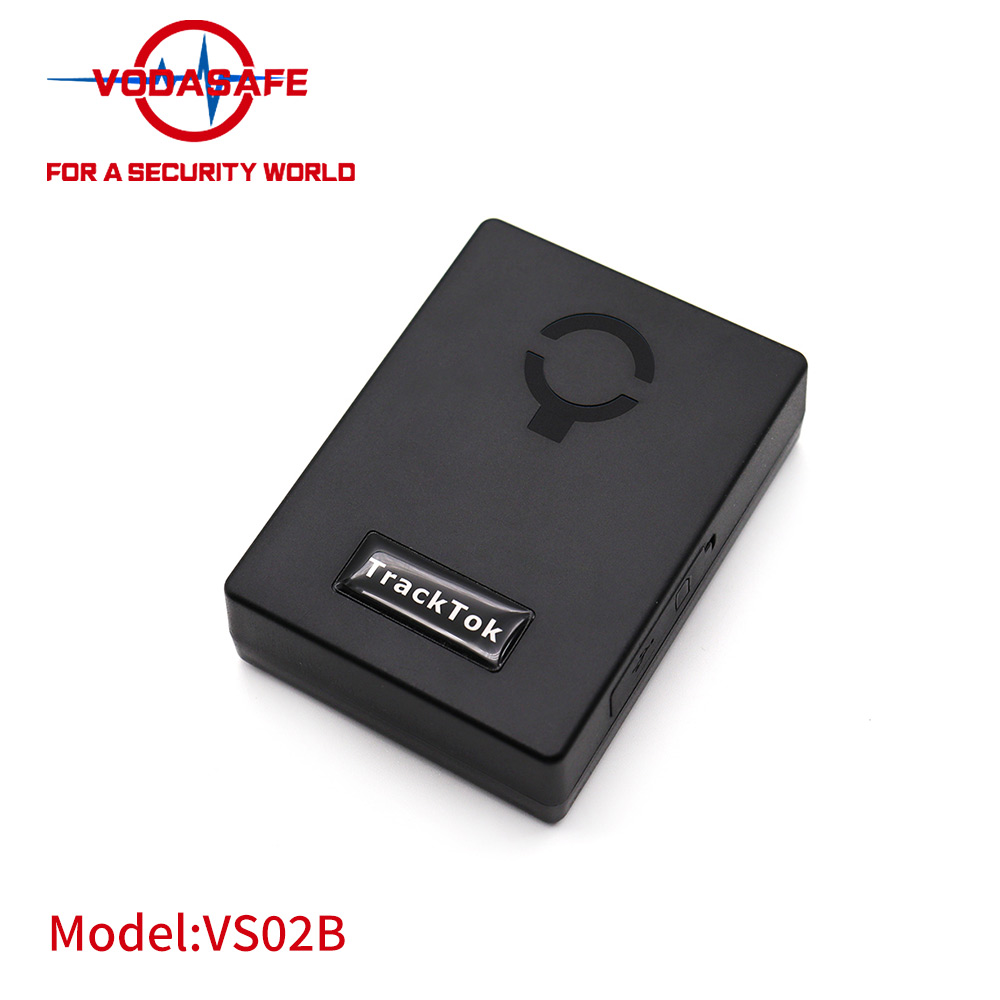

SZ Vodasafe VS02B-4G Wireless Strong Magnetic GPS Tracker
Description:
The SZ Vodasafe VS02B-4G is a premium GPS tracking device designed for global real-time monitoring of vehicles, assets, and personnel. Featuring a robust magnetic base, it enables tool-free installation on metallic surfaces. Combining 4G LTE connectivity with GPS+LBS positioning, this model delivers faster data transmission, wider network coverage, and reliable tracking in remote areas. Ideal for fleet management, logistics, and personal security, it supports adaptive working modes, multiple alarms, and remote voice monitoring to balance performance and battery efficiency.

4G LTE Wireless GPS Tracker with Built-in Battery Global 4G GPS Tracker with Dual Network Support for Logistics Tracking

Features:
Dual Network & Precision Positioning:
4G LTE-FDD (B1/B2/B3/B4/B5/B7/B8/B28/B66) + 2G GSM for global compatibility.
GPS+LBS+AGPS tri-mode positioning (5-10m outdoor accuracy via GPS, 50-500m indoor via LBS).
Real-time Tracking Channels:
SMS commands, "secumoreplus" APP (Android/iOS), and web platform at .
Portable & Magnetic Design:

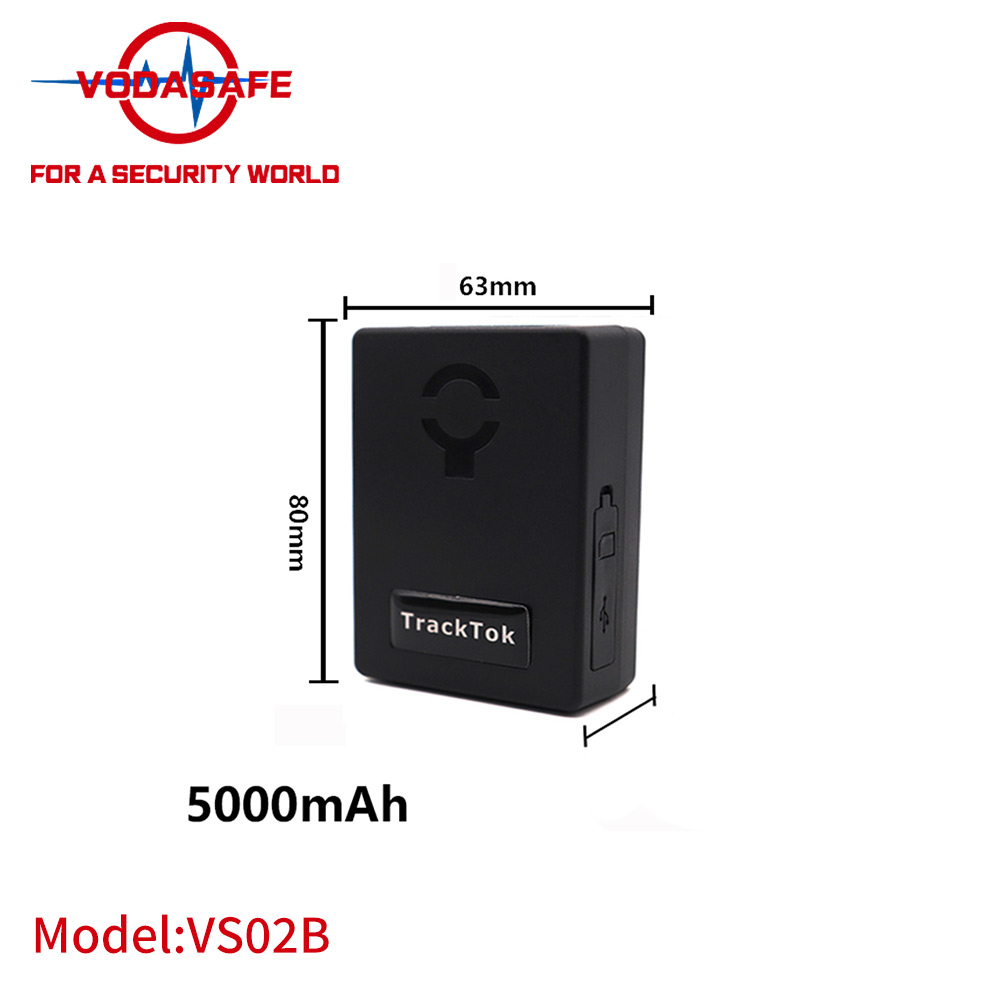

Compact dimensions: 80x63x25mm, with strong magnets for secure installation on vehicles/metal surfaces.
Comprehensive Alarm System:
Vibration, geo-fence, low battery, and removal alarms with instant notifications via SMS/APP/call.
Adaptive Working Modes:
Switch between Accurate Track, Intelligent, Timing, and Interval modes to optimize battery life.
Enhanced Battery Performance:
5000mAh rechargeable Li-ion battery (up to 90 days standby in low-power mode).
Advanced Functionalities:
Remote voice monitoring, historical track playback, travel report generation, and global time zone support.

Specifications

Specification	Parameters
Model	VS02B-4G
Network	- 4G: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 - 2G: GSM 850/900/1800/1900MHz
Positioning Mode	GPS+LBS+AGPS
Dimensions	80x63x25mm
Battery	5000mAh Li-ion, rechargeable via DC 5V-2.0A
Standby Time	Up to 90 days (varies by working mode)
Operating Temperature	-20°C to +55°C
Positioning Time	Cold start: 35-60s; Hot start: 10s
SIM Card	Nano size, requires 4G/LTE data plan (minimum 30MB/month)

Indicator Lights

Indicator	Status
Yellow (SIM)	Constant: Strong signal; Flash: No signal
Blue (GPS)	Constant: GPS locked; Flash: No GPS signal
Red (Power)	On: Charging; Off: Fully charged
Note:	All lights turn off 2 minutes after positioning but reactivate for 10s during commands/calls.

Setup & Operation
Initial Activation
Charge the Device: Use a 5V-2A charger before first use (red light on = charging, off = fully charged).
Insert SIM Card: Place a Nano SIM with 4G/LTE data (PIN code disabled) and sufficient balance.
Power On: Insert SIM, and the device auto-powers on. Move outdoors to acquire GPS+4G signals (yellow/blue lights should stabilize).
Key SMS Commands (Format Examples)
Set Center Number: centernum123456 +1234567890 (only this number receives alarms).
Request Real-time Location: Send smslink123456 for a Google Maps link.
Voice Monitoring: monitor123456 (on); tracker123456 (off).
Working Modes:
Accurate Track: MD123456 0 (continuous tracking, high power consumption).
Intelligent Mode: MD123456 1 3 8 0 (sleeps when static, wakes on vibration).
Alarm Configurations:
Enable APP+SMS+Call alarms: KC123456 3 (default: APP-only alarm).
Digital Tracking Solutions
APN Setting (for 4G):
If offline, set APN via apn123456 [APN name] (e.g., apn123456 lte.internet for LTE networks).
Web Platform:
Login to with the device's IMEI (on the unit) and default password "123456".
Mobile App:
Search "secumoreplus" on App Store/Google Play or scan the QR code in the manual for real-time tracking.

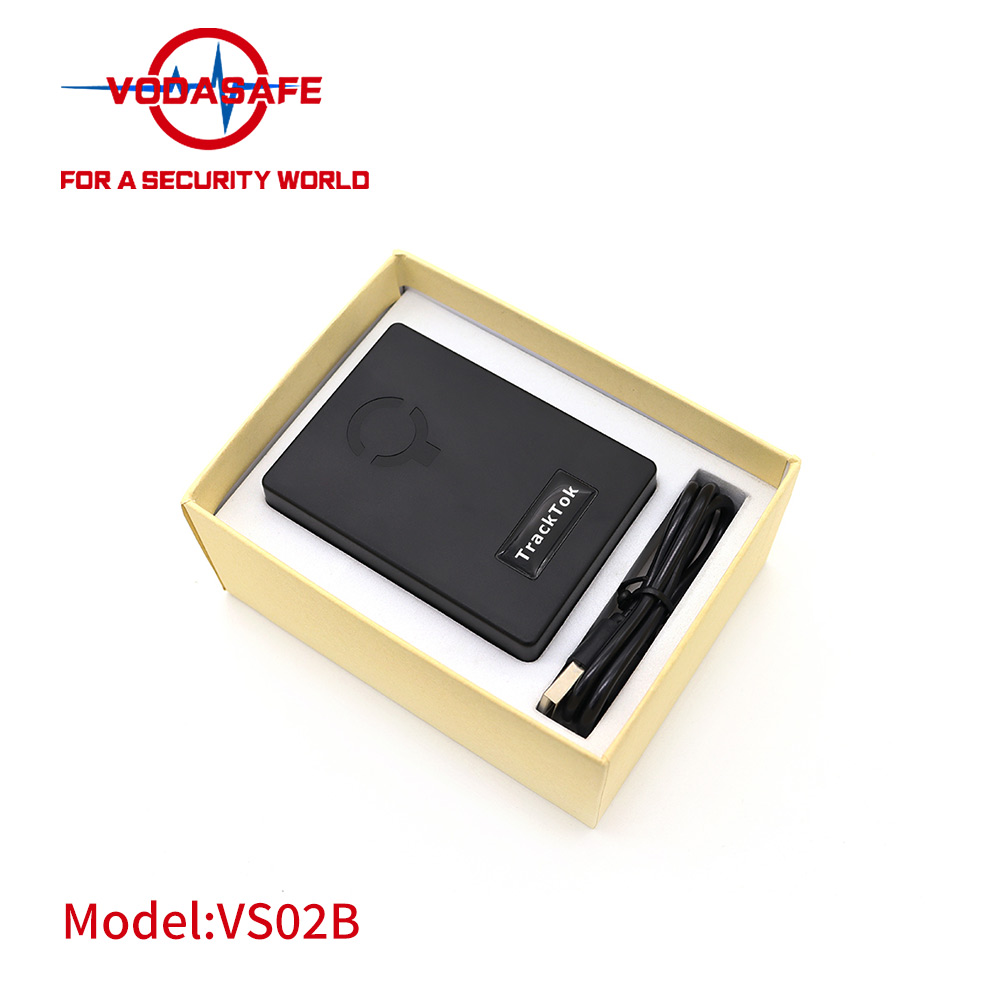

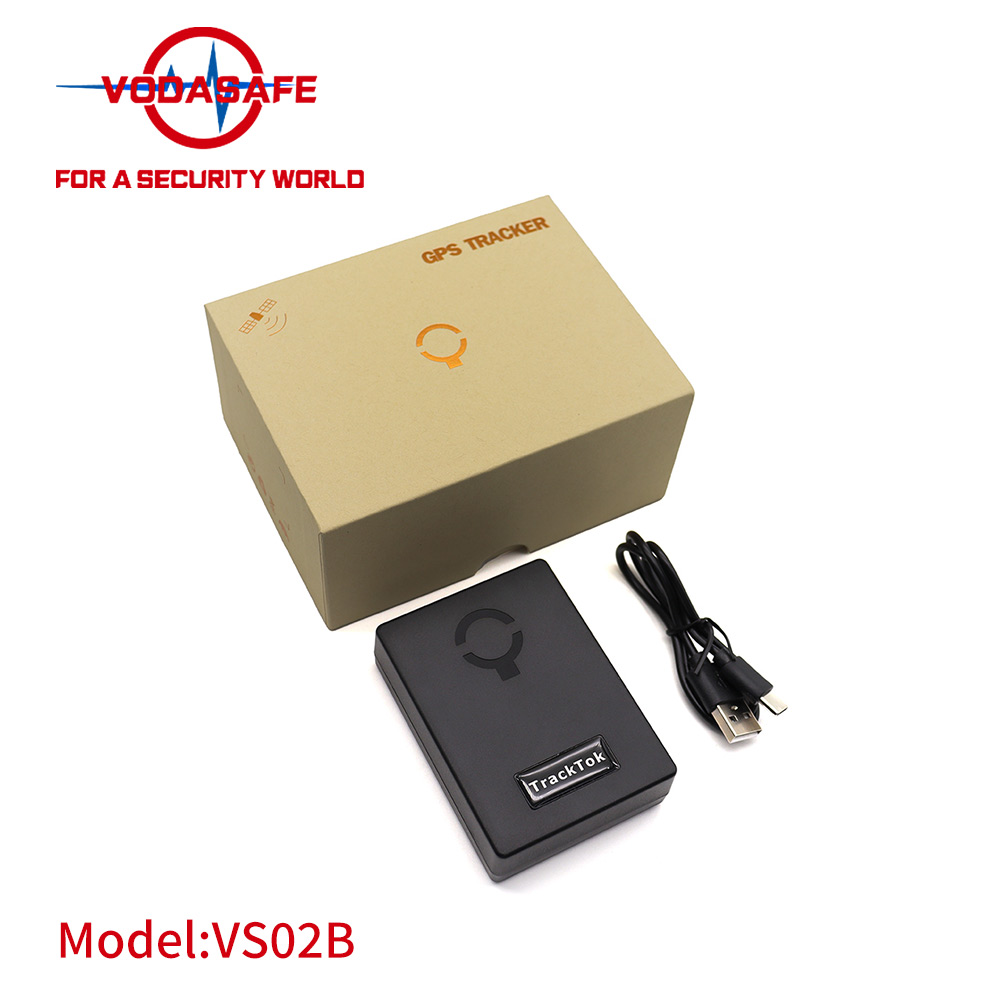

Packaging
1x VS02B-4G GPS Tracker
1x User Manual (English)
1x Type-C Charging Cable
1x Protective Silicone Cover
1x Magnetic Mounting Bracket
Packaging Details
Unit Box: 14x11x4cm, 0.25kg
Carton (50 units): 45x32x22cm, 13kg
FAQ
No 4G Signal:
Ensure SIM supports 4G/LTE bands (B1/B2/B3/B4/B5/B7/B8/B28/B66) and has active data.
Verify APN settings match the carrier's 4G configuration (e.g., apn123456 [carrier APN]).
GPS Signal Loss Indoors:
Switch to LBS positioning (50-500m accuracy) or move to an open area for GPS.
Battery Drains Quickly:
Avoid continuous use of "Accurate Track Mode"; switch to "Intelligent Mode" for extended standby.
APP/Platform Offline:
Confirm 4G data is enabled and APN is correctly set; restart the device if needed.
Command Failure:
Ensure commands use correct format (e.g., centernum123456 [phone number]) and SIM has sufficient balance.
SZ Vodasafe Commitment
As a leader in GPS tracking technology, SZ Vodasafe offers:
12-month warranty on hardware defects
Lifetime free firmware updates
24/7 technical support
Dedicated account management for bulk customers
Note: Product specifications are subject to change for optimization. Contact sales for the latest datasheet and customization options.
