7Band UAV Counter 900 2.4G 5.8G GPSL1 UAV Signal Jammer

Description

SZ Vodasafe Portable Multi-Band Signal Jammers DJ150 Series
SZ Vodasafe, a trusted name in security technology, proudly presents the DJ150 Series-a lineup of high-performance portable signal jammers designed to address critical security needs in sensitive areas. This series includes two specialized models: the 8Band 2/3/4/5G GPS Signal Jammer and the 7Band UAV Drone Signal Jammer, each engineered to deliver reliable, targeted interference for enhanced safety and protection.
Professional Portable Fpv/Uav Drone Signal Jammer Coverage up to 2000 Meters 210W Power Sz Vodasafe 8 Band Signal Jammer

Professional Portable Fpv/Uav Drone Signal Jammer Coverage up to 2000 Meters 210W Power Sz Vodasafe 8 Band Signal Jammer

DJ150 8Band 2/3/4/5G GPS Signal Jammer
The DJ150 8 Band Signal Jammer is a portable, powerful solution tailored to shield against 2G, 3G, 4G, 5G, and GPS signals. Equipped with a built-in high-gain directional antenna and 7 independently operable RF (Radio Frequency) working units, it enables flexible control over GPS functionality-allowing users to either drive drones away or force them to land as needed. The jammer transmits interference signals at a 45-60 degree angle to the surrounding area, ensuring comprehensive and uninterrupted shielding across its coverage range.
The DJ150 7 Band UAV Drone Signal Jammer is a specialized tool for countering unauthorized drone activity. It targets key UAV frequency bands-including remote-control, GPS, and transmission signals-with a built-in high-gain directional antenna and 7 independent RF working units. Like its 8Band counterpart, it offers flexible GPS control (drive away/force landing) and transmits interference at a 45-60 degree angle, ensuring 500-1000 meters of stable, comprehensive shielding for UAV-related signals.
Professional Portable Fpv/Uav Drone Signal Jammer Coverage up to 2000 Meters 210W Power Sz Vodasafe 8 Band Signal Jammer

Features:
High-Gain Antenna: Integrated 12dBi built-in antenna enhances signal interference capability, ensuring strong and stable performance.
Impressive Jamming Range: Delivers effective shielding over 500-1000 meters (note: a secondary specification mentions 30-50 meters for specific use cases, subject to environmental conditions).
Long Battery Life: Provides 30-40 minutes of continuous operation on a full charge (supports extended use for critical security tasks).

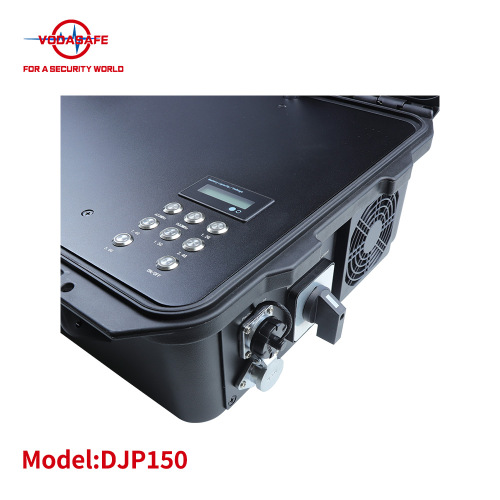

User-Friendly Design: Features a visible power switch and power indicator on the device body, enabling one-handed operation for quick deployment.
Independent Control Switches: Dedicated switches for "stopping peeping," "driving away," and "forcing to land"-allowing precise, scenario-specific interference.
Technical Specifications

Parameter Category	Details
Working Frequency (8 Bands)	CH1: 851-894MHz (850 Band) CH2: 1920-1990MHz (1900 Band) CH3: 2110-2170MHz (2100 Band) CH4: 2500-2700MHz (2600 Band) CH5: 790-821MHz (700MHz Band) CH6: 1710-1780MHz (1700 Band) CH7: 3500-3600MHz (3.5G Band) CH8: 1570-1620MHz (1500 Band)
Output Power	47 dBm (30W) per channel (±1dBm accuracy)
Power Supply	Built-in 24V, 5AH rechargeable battery
Battery Working Time	30-40 minutes (full charge)
Working Temperature	-20ºC to +55ºC (suitable for harsh indoor/outdoor environments)
Power Consumption	210W
Weight	Device: 6.2KG; Packing Weight: 9KG
Size	540mm × 270mm × 150mm (compact design for easy portability)
Inner Antenna	12dBi Gain (directional, high-performance)

Applications
Ideal for securing high-sensitivity areas where unauthorized signal access or drone activity poses risks, including:
Private properties and restricted access zones
Commercial airports, industrial facilities, and large logistics hubs
Research laboratories, corporate offices, and confidential meeting venues
Protected cultural sites and high-security commercial premises
Function:
UAV-Specific Shielding: Focuses on 7 critical UAV bands to disrupt remote control, navigation, and transmission signals effectively.
High-Gain Antenna: 12dBi built-in antenna ensures strong interference capability, even against long-range drones.
Extended Jamming Range: Covers 500-1000 meters (optimal for large-area security, such as commercial airports or industrial complexes).
Reliable Battery Performance: Operates for 30-40 minutes on a full charge, supporting continuous security patrols.
Intuitive Operation: One-handed control via visible power switch and indicator; independent switches for "stopping peeping," "driving away," and "forcing to land."
Specifications:

Working Frequency (7 Bands)	CH1: 2400-2485MHz (2.4G Band, WIFI/UAV Remote Control) CH2: 1560-1610MHz (1.5G Band, GPS L1) CH3: 5725-5850MHz (5.8G Band, UAV Transmission) CH4: 900-930MHz (900MHz Band) CH5: 400-450MHz (400MHz Band) CH6: 1100-1200MHz (1.2G Band) CH7: 1300-1400MHz (1.4G Band)
Output Power	43 dBm (20W) per channel (±1dBm accuracy)
Power Supply	Built-in 24V, 5AH rechargeable battery
Battery Working Time	30-40 minutes (full charge)
Working Temperature	-20ºC to +55ºC (durable in extreme weather conditions)
Power Consumption	210W
Weight	Device: 6.2KG; Packing Weight: 9KG
Size	540mm × 270mm × 150mm (portable for on-site deployment)
Inner Antenna	12dBi Gain (directional, optimized for UAV signal targeting)

Applications:
Designed to prevent unauthorized UAV aerial photography and intrusion in sensitive locations, including:
Private estates, commercial buildings, and event venues
Civil airports, industrial parks, and energy facilities
Chemical plants, research institutions, and private laboratories
Protected scenic areas and high-security commercial properties
Packing List (Both Models)
Each DJ150 Series jammer comes with a complete set of accessories for immediate use:

Item	Description

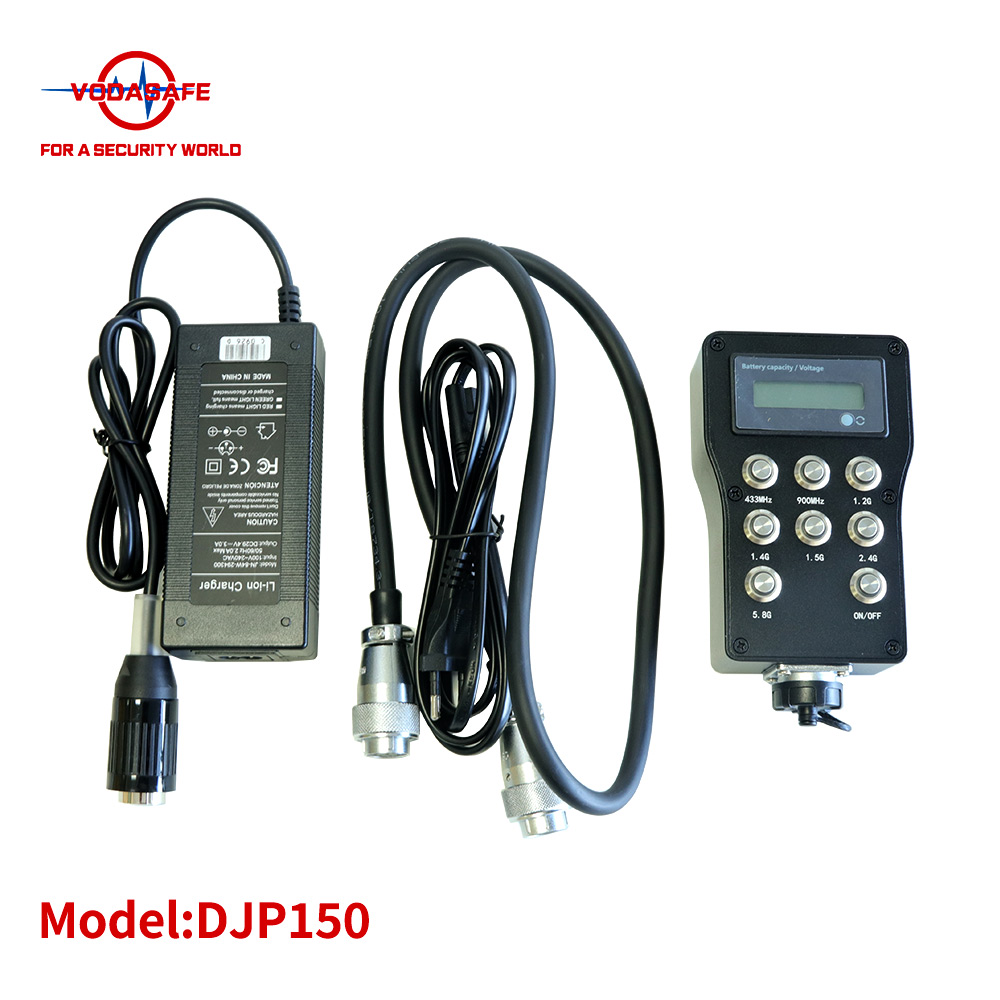

Main Device	8Band/7Band Signal Jammer (per selected model)
Charger	100-250V AC/DC 24V Charger (compatible with global voltages)

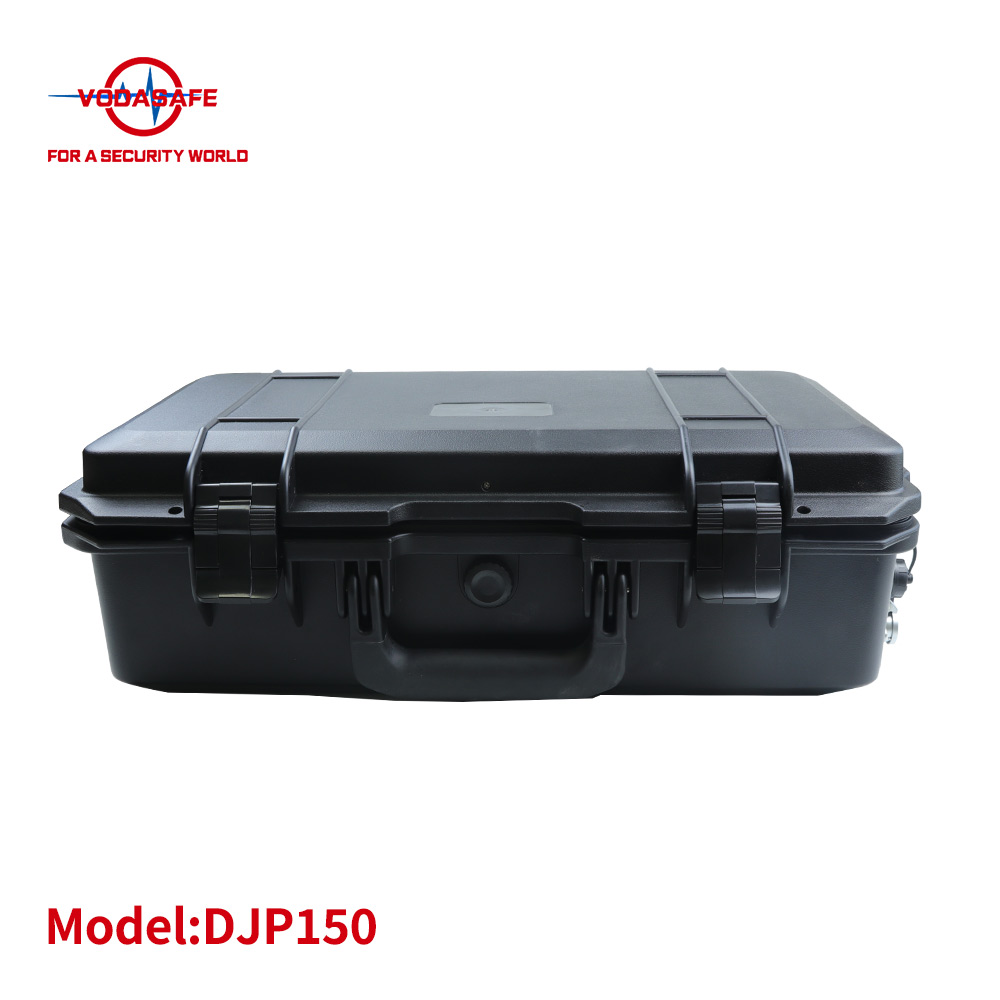

Packaging	Durable Plastic Case (for safe storage and transport)

Brand Commitment
SZ Vodasafe is dedicated to developing innovative security solutions that meet the highest standards of reliability and performance. The DJ150 Series reflects our commitment to protecting sensitive areas, critical civilian infrastructure, and public safety-backed by rigorous testing and quality control to ensure consistent operation in real-world scenarios.
For inquiries about customization, technical support, or bulk orders, please contact SZ Vodasafe's customer service team.
