800W High power Jail Cellular Jammer Model:CPJ6022
Prison Jammer

Uav /Drone Jammer/Blocker , Cellphone/GSM/DCS/GPS/3G/4GLTE/Wi-Fi2.4G/Bluetooth/Drone Jammer Uav Blocker

Item No.: PJ630A
The 180-watt high-power prison jamming system PJ630 has a jamming range of 50-100 meters and an antenna power of up to 30 watts per band, jamming all communication equipment signals.
INQUIRY
Description
Uav /Drone Jammer/Blocker , Cellphone/GSM/DCS/GPS/3G/4GLTE/Wi-Fi2.4G/Bluetooth/Drone Jammer Uav Blocker

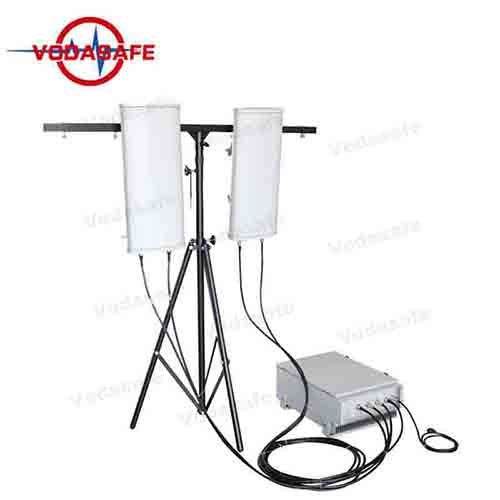

High Power Prison Jamming System
VodasafePJ630
(6bands /30W each)

Brief Description:
Vodasafe High Power prison Jamming system PJ630 Series are designed to block all wireless Networks including cellular bands such as iDen, TDMA, CDMA, GSM, UMTS, DCS, PHS, PCS, 3G,4G LTE, Wi-Fi, Bluetooth,GPS
AMPS, N-AMPS, NMT,TACS. Telephones or other electronic communication devices. In the working range of Jammer PJ630, the wireless device will be unable to receive signals and in the case of a mobile phone, cant dial outgoing calls. The jamming range depends entirely on the signal strength in a given area. the PJ630 model that fits the appropriate commercial or institutional application.

Features:
  • Up to Six Frequency Bands.
  • PLL Synthesized Signal Source
  • Scew controls to adjust Output Power
  • 10dBi Directional Antennas each Band
  • Only Interferes w/Downlink Base Station Frequencies
  • Slow Start-up Circuitry for Long Term Reliability
  • Over Temperature and VSWR Protection
  • Status/Alarm LEDs
  • Fan Cooled Rack Enclosure with Casters
  • 100-240VAC Power Supply Source
  • Optional Status Monitoring Software for Client PC

 Applicable place:
Jammers for prisons and other large sensitive locations such as military or governmental compounds. Homeland Security, Correctional Centers
Petrochemical Industry, Sports Venues and Theaters, VIP Convoy Protection, Bomb Prevention/Disposal, Schools and Universities Government and Military, Power Generating Plants

Specification:
Total Outputpower:180W
Cover Radius:50-100m(under Signal level ≤-85dBm)@according to the signal density mobile network;
Jamming type: Sweep Jamming;
Antenna Type: Directional Antenna or Omini-directional antenna;
Remote control on/off:(3-5m);
Power Supply: AC adapter (50 to 60Hz/100 to 240V AC –DC27V);
Electric Filed (SAR): Compatible with ICNIRP Standards (Human safe);
Operating Temp: -20 to +50℃;
Storage Temp: -40 to +60℃;
Humidity: 5%-80%;
Dimension(LXWXH): 530 x 300x 200mm not include antennas;
Weight:25kg;

Order Information:
Vodasafe PJ630A:Jamming for 2/3/4G Cellphone/Wi-Fi2.4G/Bluetooth

We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.

Optional frequency:
1.CDMA/GSM:850-894MHz 30W;
2.GSM: 925-960 MHz 30W;
3.GSM/DCS:1805-1880MHz 10W;
4.3G/UMTS: 2110-2170MHz 10W;
5.4GLte: 790-826MHz 10W;
6.4G/WiMAX: 2620-2690MHz 10W;
7.WIFI2.4G :2400-2485MHz 10W;
8.4G2:2500-2570MHz 10W;
9.GPSL1:1570-1610 MHz 10W;
10.GPSL2:1200-1300MHz 10W;
11.GPSL3:1380-1400 MHz 10W;
12.WIF5.8G:5725-5850MHz 8W;
13.VHF:135-174MHz 30W;
14.UHF: 400-470MHz 30W;
15.RC433MHz: 433MHz 30W;
16.RC315MHz: 315 MHz 30W;
17:CDMA450MHz:450-470MHz 30W;

Package contents:
1 pc One main jammer unit
6 pcs Directional Antennas 90 Degree
1 pc Antennas frame with 1.5m cable
1 pc Power cord
1 pc Wireless OFF/ON remote controller 315MHz

Order Information:
Vodasafe PJ630A:Jamming for 2/3/4G Cellphone/Wi-Fi2.4G/Bluetooth
We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.
